Terminal 30 Wire Junction 2 -TV22-: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to Battery -A-, DISCONNECTING AND CONNECTING, 0K0 AND 0K3 .
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING - 2.0L DMSA , AIR FILTER HOUSING, REMOVING AND INSTALLING - 2.0L DPVA or AIR FILTER HOUSING, REMOVING AND INSTALLING - 3.0L .

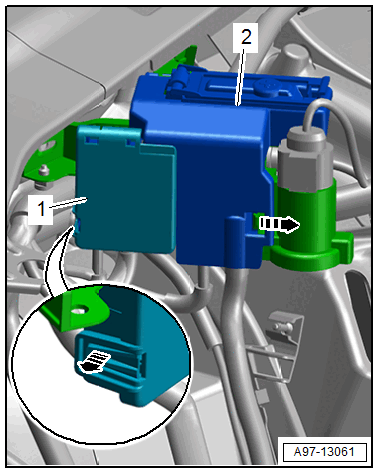

-- Release the retainers in the direction of -arrows-.
-- Open the cover in the sequence -2 and 1-.

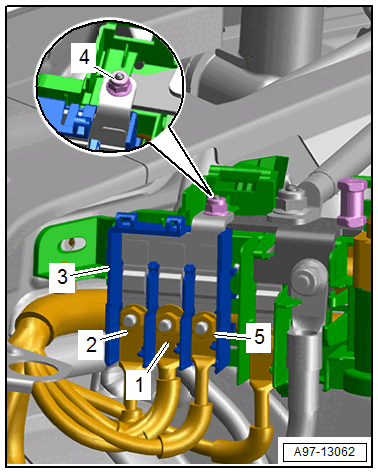

-- Remove the wires -1, 2 and 5- and free them up.
-- Remove the nut -4-.
-- Remove the wire junction -3- upward.
