Relay and Fuse Panel 2 -SR2-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

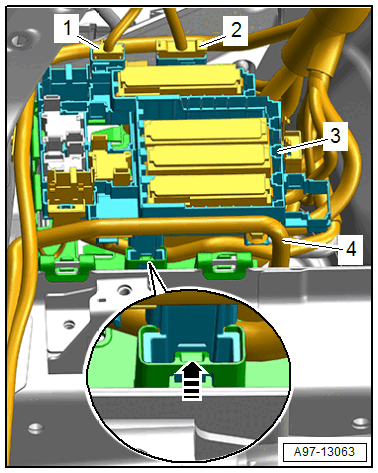

-- Disconnect the connectors -1 and 2-.

-- Free up the wiring harness -4-.

-- Release the retainer in the direction of -arrow-.

-- Lift the relay and fuse panel 2 -item 3- and remove it toward the right.

-- Open the clip in the direction of the -arrow- and remove the fuse panel -2- from the Relay and Fuse Panel 2 -SR2- -item 1-.

Fig 1: Fuse Panel

Courtesy of AUDI

-- Open the clip and remove the auxiliary fuse panel -2-.

Fig 2: Auxiliary Fuse Panel

Courtesy of AUDI

-- Release the clips in the direction of -arrows- and remove the relay -1- and the control modules from the relay panels.

-- Release the clips in the direction of -arrows- and pull the relay panel -2- toward the rear out of the Relay and Fuse Panel 2 -SR2- -item 1-.

Fig 3: Identifying Relay Panel And Connector Station

Courtesy of AUDI

-- Remove the relay and fuse panel 2.
