Relay and Fuse Panel 1 -SR1-, REMOVING AND INSTALLING, LHD: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the footwell cover on the driver side. Refer to the appropriate Service Information. .

-- Remove the left front sill panel. Refer to SILL PANEL, REMOVING AND INSTALLING .

-- Remove the left front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Push the carpet in the relay and fuse panel 1 area to the side as far as possible.

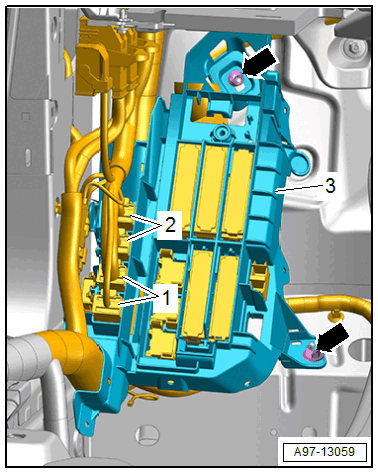

-- Disconnect the connectors -1 and 2-.

Courtesy of AUDI

-- Cut the cable tie.

-- Remove the nuts -arrows-.

-- Remove the relay and fuse panel 1 -item 3- from the threaded pins and remove it from the body toward the inside.

Tip:

The carpet must be removed if the relay and fuse panel 1 cannot be removed as described. Refer to CARPET, REMOVING AND INSTALLING .

-- Release the clip in the direction of -arrow-, push the fuse panel -item 2- out toward the rear and disengage it from relay and fuse panel 1 -item 1-.

Fig 1: Fuse Panel

Courtesy of AUDI

-- Open the clip and remove the auxiliary fuse panel -2-.

Fig 2: Auxiliary Fuse Panel

Courtesy of AUDI

-- Release the clips in the direction of -arrows- and remove the relay -1- and the control modules from the relay panels.

-- Open the clips in the direction of -arrows- and press the relay panel -3- toward the rear and out of the bracket -4-.

Fig 3: Identifying Relay Carrier

Courtesy of AUDI

-- Open the clip -1- and remove the connector terminal -2- from the bracket.

-- Remove relay and fuse panel 1.
