Component Location Overview - Relay Panel, Fuse Panel, E-Boxes, Right FOOTWELL
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

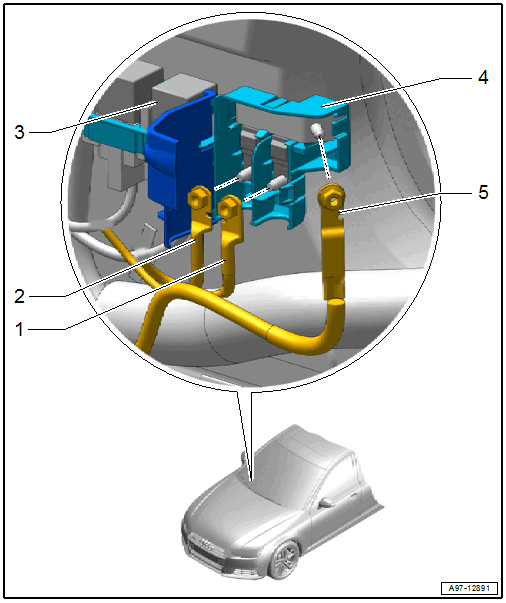

- Line
- Allocation. Refer to the appropriate Wiring Diagram.
- Tightening specification: 7.5 Nm
- Line
- Allocation. Refer to the appropriate Wiring Diagram.
- Tightening specification: 7.5 Nm
- Relay Mount
- Allocation. Refer to Wiring Diagram.
- Relay and Fuse Panel 4 -SR4-
- Removing and Installing. Refer to Relay and Fuse Panel 4 -SR4-, REMOVING AND INSTALLING .
- Positive Cable
- From the battery
- Tightening specification: 7.5 Nm
