Component Location Overview - Component Location Overview - Relay Panel, Instrument Panel, E-Boxes In Engine Compartment, 48 V System, 0K4 And VH2
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

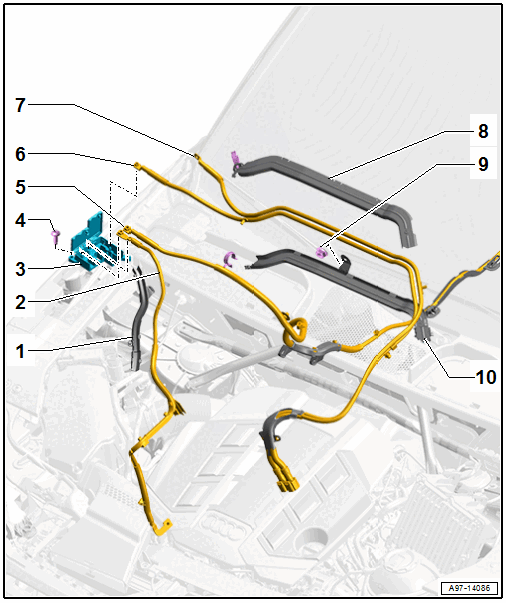

- Cable Holder
- Positive Cable
- To the Starter Generator -C29-
- Tightening specification: 20 Nm
- Terminal 40 Wire Junction -TV66-
- Removing and Installing. Refer to Terminal 40 Wire Junction -TV66-, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 5 Nm
- Wire
- To Terminal 40 Wire Junction 2 -TV67-
- Tightening specification: 20 Nm
- Positive Cable
- To the Electric Compressor Control Module -J1123-
- Tightening specification 9 Nm.
- Ground Wire
- Tightening specification: 20 Nm
- Cover
- Nut
- 3 Nm
- Cable Holder
