Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING, LHD: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the A-pillar lower trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

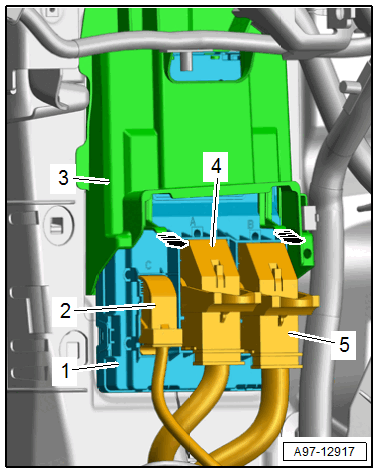

-- Release the retainers in the direction of -arrows- and pull the vehicle electrical system control module -1- slightly downward.
-- Disconnect the connectors -2, 4 and 5-.
-- Remove the vehicle electrical system control module downward from the mount -3-.
