Vehicle Electrical System Control Module -J519- MOUNT, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

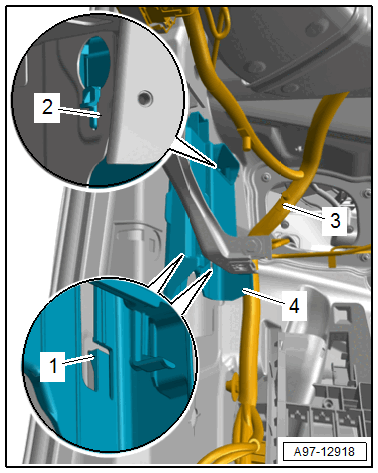

-- Remove the vehicle electrical system control module. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
-- Free up the wiring harness -3-.
-- Release the retainers -1- and push the mount -4- upward until the guides -2- disengage.
-- Remove the mount downward.
