Data Bus on Board Diagnostic Interface -J533-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

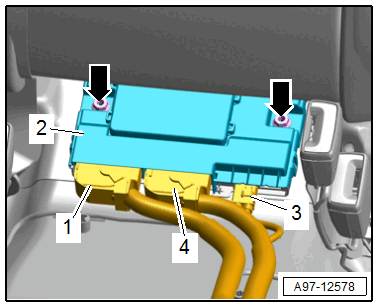

Vehicles without protective cover:
-- Disconnect the connector -1-.
-- If equipped, disconnect the connector -4- and antenna wire -3-.
-- Remove the nuts -arrows-.
-- Remove the data bus on board diagnostic interface -2-.
Vehicles with protective cover:
-- Free up the protective cover -1- at the carpet -6-.
-- Remove the nuts -arrows- through the opening in the protective cover.
-- Remove the data bus on board diagnostic interface -3- from the protective cover.
-- Disconnect the connector -2-.
-- If equipped, disconnect the connectors -4 and 5-.
-- Remove the protective cover from the threaded pins.
