Data Bus on Board Diagnostic Interface -J533-, REMOVING AND INSTALLING: Installing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

Install in the reverse order of removal while noting the following:

-- When installing, the data bus on board diagnostic interface must always be installed with the protective cover -1-. Refer to the appropriate Electronic Parts Information, also if no protective cover has been used before.

TIP:

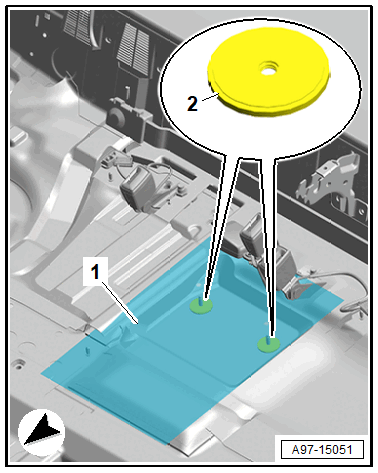

The rubber spacers -2- are adhered to the protective cover.

-- Slide the protective cover -1- with the rubber spacers -2- onto the threaded pins.

Courtesy of AUDI

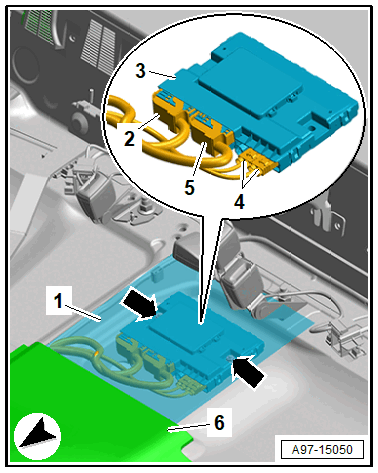

-- Connect the connectors -2, 4 and 5-.

Courtesy of AUDI

-- Insert the data bus on board diagnostics interface -3- into the protective cover -1-, position it on the threaded pins and tighten on the inside of the protective cover using the nuts -arrows-.

-- Secure the opening of the protective cover under the carpet -6-.

Only ERA-GLONASS Russia: check the emergency call function. Refer to EMERGENCY CALL FUNCTION: CHECKING LED STATUS (NECESSARY GREEN LED ILLUMINATED BEFORE DELIVERY TO CUSTOMER)
