Adjustment Dimensions

TIP:

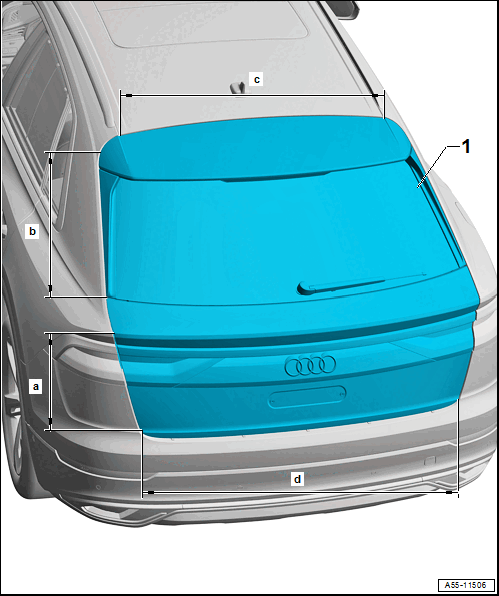

Gap dimensions apply to the specified areas.

Courtesy of AUDI

1. a -

   Rear Lid to Side Panel Bottom

   • Gap dimension = 3.7 mm
2. b -

   Rear Lid to Top of Side Panel

   • Gap dimension = 4.0 mm
3. c -

   Rear Lid to Roof

   • Gap dimension = 5.0 mm
4. d -

   Rear Lid to Bumper

   • Gap dimension = 3.7 mm
