Rear Lid Drive Unit -VX69- /Rear Lid Drive Unit 2 -VX77-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

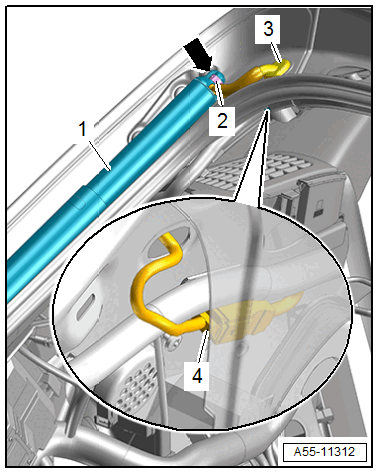

-- Release and disconnect the connector -4-.
-- Have second technician support the rear lid.
-- Lift the locking spring -2- slightly with a small screwdriver.
-- At the same time, remove the rear lid drive unit -1- from the ball pin -arrow- at the body and the rear lid.
-- Remove the grommet -3- from the body and guide the wiring harness out through the opening.
