Power Rear Lid Opening Control Module -J938-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the bolts -arrows- on the lower section of the bumper cover.
TIP:
The quantity of bolts -arrows- varies depending on the model.

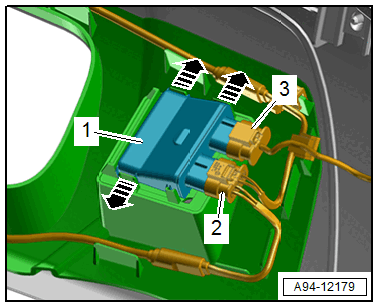

-- Release and disconnect the connectors -2 and 3-.
-- Release the retainers -arrows-.
-- Remove the Power Rear Lid Opening Control Module -J938- -item 1- from the mount.
