Latch, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear lid lower trim panel and the latch cover. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

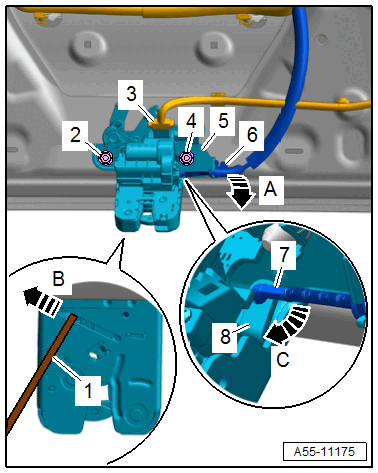

-- Turn the operating cable on the lever -6- 90° -arrow A-.
-- At the same time, remove the operating cable -6- from the cable bracket -5-.
-- Using a screwdriver -1-, secure the operating lever -8- on the opposite side -arrow B-.
-- Disengage the release cable nipple -7- on the operating lever -arrow C-.
-- Release and disconnect the connector -3-.
-- Remove the nuts -2 and 4-.
-- Remove the latch -5-.
