Latch, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the headlamps. Refer to HEADLAMP, REMOVING AND INSTALLING .

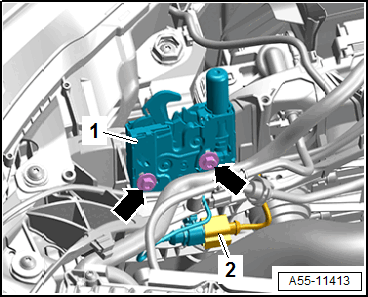

-- Free up the connector -2-.
-- Release and disconnect the connector -2-.
-- Remove the bolts -arrows-.
-- Remove the latch -1-.
-- Release the catches -4- and remove the cable bracket from the mount -3- -arrow-.
-- Remove the release cable nipple -1 and 2- from the release levers on the latch.
-- Remove the latch.
