Center Impact Guard, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

-- Loosen the side impact guard on the respective side. Refer to SIDE IMPACT GUARD, REMOVING AND INSTALLING .

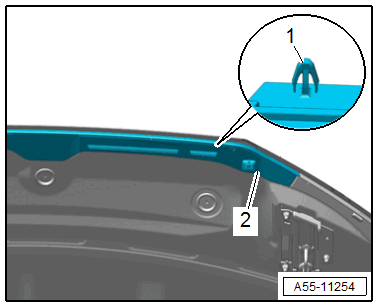

-- Pry out the center impact guard -2-. The retainers -1- are released at the same time.

GWWA55-11254Courtesy of AUDI
