Hinges, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front lid. Refer to HOOD, REMOVING AND INSTALLING .
-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .
-- Left side: remove the windshield wiper motor. Refer to WINDSHIELD WIPER MOTOR -V-, REMOVING AND INSTALLING .

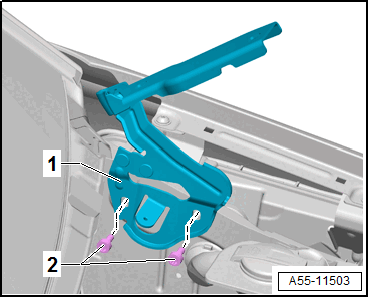

-- Mark the hinge -1- for reinstallation.
-- Remove the bolts -2-.
-- Remove the hinge -1-.
