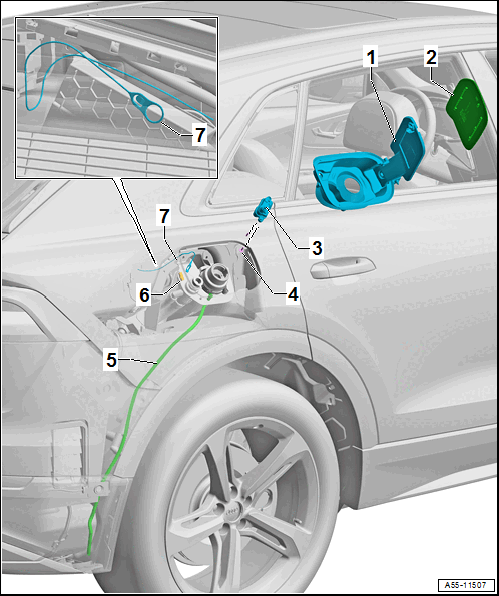

Overview - Fuel Filler Door Unit
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Fuel Filler Door Unit
- Replace after removing
- Removing and Installing. Refer to FUEL FILLER DOOR UNIT, REMOVING AND INSTALLING .
- Trim
- For the fuel filler door unit
- Removing and Installing. Refer to FUEL FILLER DOOR UNIT TRIM, REMOVING AND INSTALLING .
- Fuel Filler Door Lock Motor -V155-
- Removing and Installing. Refer to Fuel Filler Door Lock Motor -V155-, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 1.5 Nm
- Drain Hose
- For the fuel filler door unit
- Removing and Installing. Refer to FUEL FILLER DOOR UNIT DRAIN HOSE, REMOVING AND INSTALLING .
- Connector
- Emergency Release Cable
- Removing and Installing. Refer to EMERGENCY RELEASE CABLE, REMOVING AND INSTALLING .
