Emergency Release Cable, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the fuel filler door unit. Refer to FUEL FILLER DOOR UNIT, REMOVING AND INSTALLING .
-- Remove the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the fuel filler door lock motor. Refer to Fuel Filler Door Lock Motor -V155-, REMOVING AND INSTALLING .

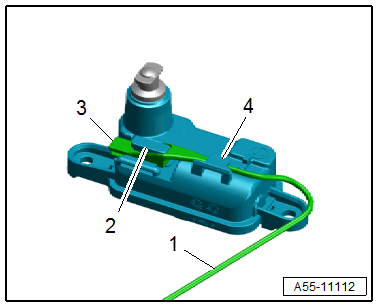

-- Thread the emergency release cable -1- out of the guide -4-.
-- Disengage the tab -3- on the emergency release mount -2- and remove it from the emergency release cable support bracket.
