Wire Junction And Terminal 30 Wire Junction 3 -TV1- / -TV28-, Removing And Installing, 0K3, 0K4: Removing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect the ground cable to the Battery -A- when the ignition is switched off. Refer to Battery -A-, DISCONNECTING AND CONNECTING .

-- Remove the front sill panel. Refer to SILL PANEL, REMOVING AND INSTALLING .

-- Remove the A-pillar lower trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

LHD vehicle

Courtesy of AUDI

-- Remove the screw clips -A-.

-- Loosen the insulation -B- from the heater and A/C unit air intake housing and remove.

Continuation for all vehicles

Courtesy of AUDI

-- Push the carpet in the area of the footwell to the side as far as possible.

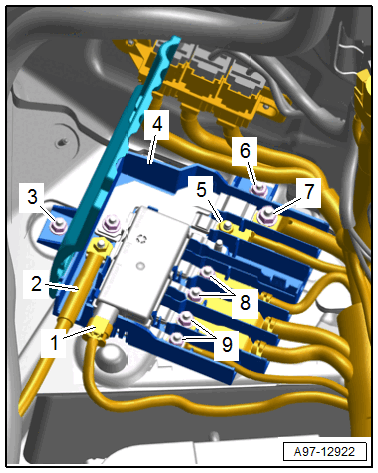

-- Release the retainer -arrow A- and open the cover -1- -arrow B-.

-- Remove the wires -2 and 7-.

Courtesy of AUDI

-- Remove the nuts -5, 8 and 9- and free up the wires.

-- Remove the nuts -3 and 6-.

-- Remove the E-box -4-.
