Terminal 40 Wire Junction 2 -TV67-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

-- De-energize the 48V system. Refer to 48V SYSTEM, DE-ENERGIZING .

-- Disconnect the ground cable to the Battery -A- when the ignition is switched off. Refer to BATTERY, DISCONNECTING AND CONNECTING .

-- Remove the partition cover. Refer to COMPONENT LOCATION OVERVIEW - VEHICLE INTERIOR TRIM PANELS .

-- Remove the luggage compartment carpet bracket. Refer to LUGGAGE COMPARTMENT CARPET BRACKET, REMOVING AND INSTALLING .

-- Remove the rear sill panel. Refer to SILL PANEL, REMOVING AND INSTALLING .

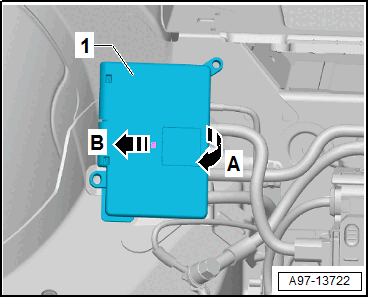

-- Release the retainer -arrow B- and open the cover -1- -arrow A-.

Courtesy of AUDI

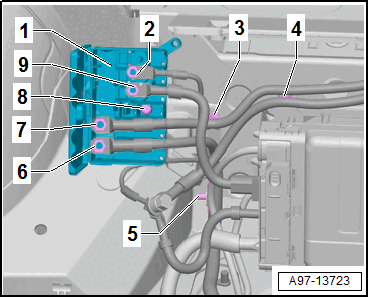

-- Loosen the clips -3-, -4- and -5-.

Courtesy of AUDI

-- Remove the nut -6- and free up the wire.

-- Remove the nuts -2-, -9- and -7- and free up the wires.

-- Remove the bolt -8-.

-- Remove the Terminal 40 Wire Junction 2 -TV67- -1-.

NOTE:

The bracket for the Terminal 40 Wire Junction 2 -TV67- can only be removed together with Voltage Converter, 48 V/12 V -A7-. Refer to Voltage Converter, 48 V/12 V -A7-, REMOVING AND INSTALLING .
