Component Location Overview - Relay Panel, Fuse Panel, E-Boxes, Left FOOTWELL, LHD
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

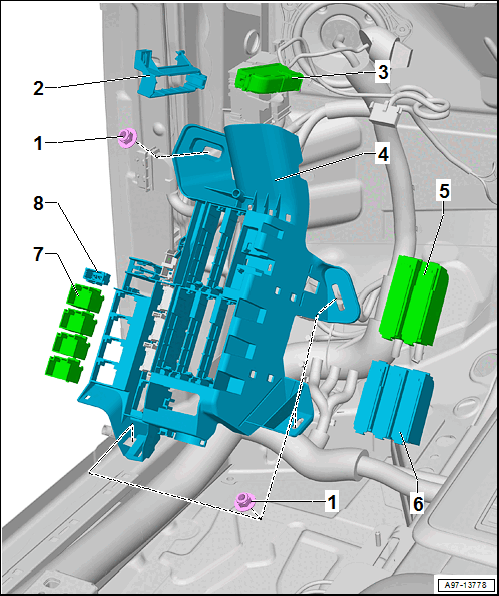

- Nut
- Quantity: 4
- 3 Nm
- Mount
- Fuse Panel F -SF-
- Removing and installing. Refer to Fuse Panel F -SF-, REMOVING AND INSTALLING .
- Instrument Panel Fuse Panel
- Fuse Panel F -SF-
- Removing and installing. Refer to Fuse Panel F -SF-, REMOVING AND INSTALLING .
- Relay and Fuse Panel 2 -SR2-
- Removing and installing. Refer to Relay and Fuse Panel 2 -SR2-, REMOVING AND INSTALLING, LHD .
- Fuse Panel
- Fuse Panel A -SA- and Fuse Panel B -SB-
- Allocation. Refer to the appropriate Wiring Diagram.
- Removing and installing. Refer to Relay and Fuse Panel 2 -SR2-, REMOVING AND INSTALLING, LHD .
- Fuse Panel
- Fuse Panel C -SC-, Fuse Panel D -SD- and Fuse Panel E -SE-
- Allocation. Refer to the appropriate Wiring Diagram.
- Removing and installing. Refer to FUSE PANEL, REMOVING AND INSTALLING .
- Relay Mount
- Allocation. Refer to the appropriate Wiring Diagram.
- Auxiliary Fuse Panel
