Camshaft Position Sensor, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Release and disconnect the connector -1- for the Engine Coolant Level Sensor -G32-.

Courtesy of AUDI

-- Release the retainers using a screwdriver in direction of -arrow-, pull off the coolant expansion tank -2- with connected coolant hoses upward out of the bracket as far as possible and put aside.

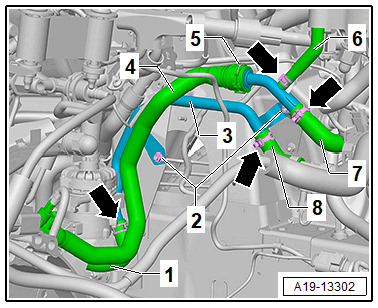

-- Unclip and free up the refrigerant line -7- from the coolant line -2- out of the bracket.

Courtesy of AUDI

-- Open the clip -3- and free up the coolant hose -6-.

-- Remove the bolts -arrows-.

-- Remove the coolant expansion tank bracket -1- upward and then move it to the side. While doing so, guide the guide piece out of the grommet -4- of the bracket -5-.

-- Remove the nuts -2-.

Fig 1: Coolant Pipe on Left Upper Longitudinal Member

Courtesy of AUDI

-- Remove the coolant pipe -3- from the pin and free it up downward.

Continuation for All:

All additional procedures are described. Refer to CAMSHAFT POSITION SENSOR, REMOVING AND INSTALLING .
