Overview - Telephone, AUDI Phone Box (9ZE), Before Product Improvement

The Information Electronics Control Module 1 -J794- is installed and is used for hands-free calling.

The connection to the Cellular Telephone -R54- takes place via Bluetooth. The Bluetooth Antenna -R152- is integrated in the Information Electronics Control Module 1 -J794-.

Operation is performed via Multimedia Control Head -E380- or via Cellular Telephone -R54-.

The Left Front Microphone -R140- and the Right Front Microphone -R141- are installed in the Front Roof Module -WX3-.

The Telephone Baseplate -R126- (Audi phone box) is installed in the multimedia device storage compartment in the center console with a pairing antenna. The Telephone Baseplate -R126- may also be equipped with a module for wireless charging of the corresponding Cellular Telephone -R54-.

The Telephone Antenna -R65- for phone function is connected through the Cellular Telephone Amplifier -R86- to the Telephone Baseplate -R126-.

An LTE module can also be installed in the Information Electronics Control Module 1 -J794- for an Internet connection (Audi connect, EL3).

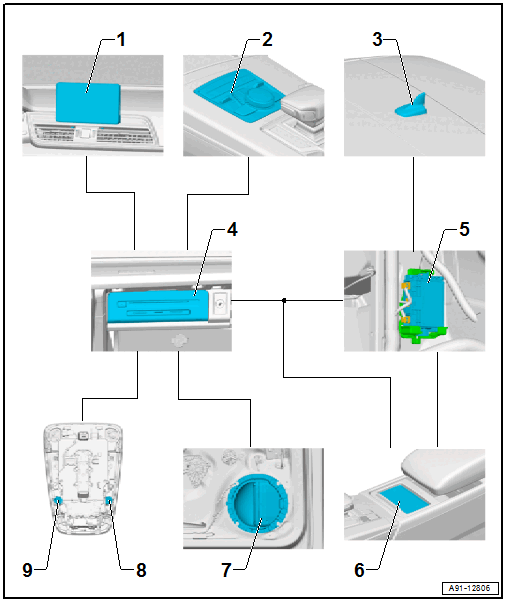

9ZE - Audi Phone Box

Courtesy of AUDI OF AMERICA, LLC

1. Front Information Display Control Head -J685-, display in center of the instrument panel
2. Multimedia System Control Head -E380- in the center console
3. Roof Antenna -R216-
4. Information Electronics Control Module 1 -J794- with Bluetooth Antenna -R152- in the Glove Compartment
5. Cellular Telephone Amplifier -R86- in the Luggage Compartment on the Upper Right Rear Side
6. Telephone Baseplate -R126- inside the Multimedia Device Storage Compartment
7. Sound Systems
8. Right Front Microphone -R141-
9. Left Front Microphone -R140-

Antennas

9ZE - Audi phone box without Audi connect EL0:

• The Telephone Antenna -R65- in installed for phone function.
• There are no LTE antennas installed for data transmission.

9ZE - Audi phone box with Audi connect EL3:

• The Telephone Antenna -R65- in installed for phone function.
• The LTE Antenna 1 -R297- and the LTE Antenna 2 -R306- is installed for data transmission.

Overview Antennas

Courtesy of AUDI OF AMERICA, LLC

1. Information Electronics Control Module 1 -J794-
2. Telephone Baseplate -R126-
3. Cellular Telephone Amplifier -R86-
4. Right Bumper Antenna
   • Telephone Antenna -R65-, EL3/IW1/IV1 through IV6
5. Left Bumper Antenna
   • LTE Antenna 2 -R306-, EL3 and IW0/IW3/IW5/IV0 (for IV1 through IV6 under the center front instrument panel)
   • LTE Antenna 1 -R297-, EL3 and IW1/IV1 through IV6
6. LTE Antenna 2 -R306-
   • EL3 and IW1
7. Roof Antenna -R216-
   • Telephone Antenna -R65-, EL0/IW0/IW3/IW5/IV0
   • LTE Antenna 1 -R297-, EL3 and IW0/IW3/IW5/IV0

• IW0 - without emergency call system, eCall/bCall/eMob
• IW1/IW3/IW5 - with emergency call system, eCall/bCall/eMob
• EL0 - without Audi connect online service
• EL3 - with Audi connect online service
• IV0 - Without connect Packet Plus
• IV1 through IV6 - with connect Plus

Antenna, removing and installing. Refer to COMPONENT LOCATION OVERVIEW - ANTENNA SYSTEMS .
