Left Front Treble Speaker 2 -R220- /Right Front Treble Speaker 2 -R221-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the A-pillar trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

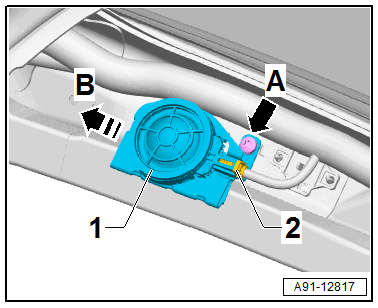

-- Disconnect the connector -2-.
-- Remove the screw -arrow A-.
-- Push the speaker -1- all the way in the direction of -arrow B-.
-- Remove the speaker -1-.
