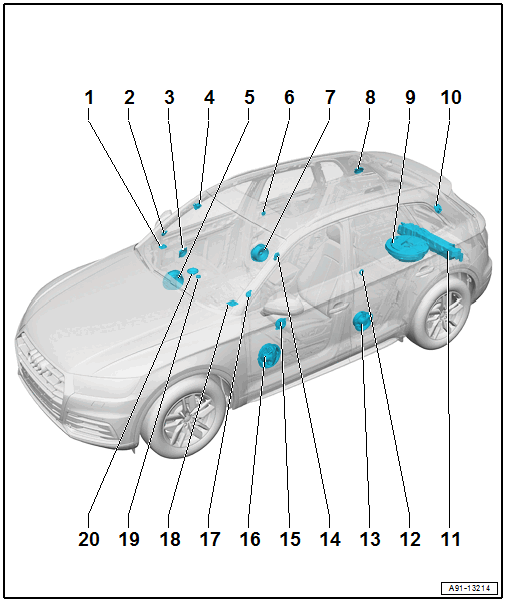

Component Location Overview - Sound System, Speakers

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Right Front Treble Speaker -R22-, 8RM/9VD
- Removing and Installing. Refer to Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-, REMOVING AND INSTALLING, 8RM/9VD .
  Right Front Midrange Speaker 2 -R277-, 9VS
- Removing and Installing. Refer to Left Front Midrange Speaker 2 -R276- /Right Front Midrange Speaker 2 -R277-, REMOVING AND INSTALLING .
Right Front Treble Speaker -R22-, 9VS
- Removing and Installing. Refer to Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-, REMOVING AND INSTALLING, 9VS .
Right Front Midrange Speaker -R104-, 9VS
- Removing and Installing. Refer to Left Front Midrange Speaker -R103- /Right Front Midrange Speaker -R104-, REMOVING AND INSTALLING .
Right Front Treble Speaker 2 -R221-, 9VS
- Removing and Installing. Refer to Left Front Treble Speaker 2 -R220- /Right Front Treble Speaker 2 -R221-, REMOVING AND INSTALLING .
Right Front Bass Speaker -R23-
- Removing and Installing. Refer to Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, REMOVING AND INSTALLING .
Right Rear Treble Speaker -R16-
- Removing and Installing. Refer to Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-, REMOVING AND INSTALLING .
Right Rear Bass Speaker -R17-
- Removing and Installing. Refer to Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-, REMOVING AND INSTALLING .
Right Effects Speaker -R210-, 9VS
- Removing and Installing. Refer to EFFECTS SPEAKER, REMOVING AND INSTALLING .
Subwoofer -R211-, 9VD/9VS
- Vehicles without high-voltage system, 0K0/0K4
- Removing and Installing. Refer to Subwoofer -R211-, REMOVING AND INSTALLING, VEHICLES WITHOUT HIGH-VOLTAGE SYSTEM (0K0/0K4) .
Left Effects Speaker -R209-, 9VS
- Removing and Installing. Refer to EFFECTS SPEAKER, REMOVING AND INSTALLING .
Subwoofer -R211-, 9VD/9VS
- Vehicles with high-voltage system, 0K3
- Removing and Installing. Refer to Subwoofer -R211-, REMOVING AND INSTALLING, VEHICLES WITH HIGH-VOLTAGE SYSTEM, 0K3 .
Left Rear Treble Speaker -R14-
- Removing and Installing. Refer to Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-, REMOVING AND INSTALLING .
Left Rear Bass Speaker -R15-
- Removing and Installing. Refer to Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-, REMOVING AND INSTALLING .
Left Front Treble Speaker 2 -R220-, 9VS
- Removing and Installing. Refer to Left Front Treble Speaker 2 -R220- /Right Front Treble Speaker 2 -R221-, REMOVING AND INSTALLING .
Left Front Midrange Speaker -R103-, 9VS
- Removing and Installing. Refer to Left Front Midrange Speaker -R103- /Right Front Midrange Speaker -R104-, REMOVING AND INSTALLING .
Left Front Bass Speaker -R21-
- Removing and Installing. Refer to Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, REMOVING AND INSTALLING .
Left Front Treble Speaker -R20-, 9VS
- Removing and Installing. Refer to Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-, REMOVING AND INSTALLING, 9VS .
Left Front Treble Speaker -R20-, 8RM/9VD
- Removing and Installing. Refer to Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-, REMOVING AND INSTALLING, 8RM/9VD .
  Left Front Midrange Speaker 2 -R276-, 9VS
- Removing and Installing. Refer to Left Front Midrange Speaker 2 -R276- /Right Front Midrange Speaker 2 -R277-, REMOVING AND INSTALLING .
Center Speaker 2 -R219-, 9VS
- Removing and Installing. Refer to Center Speaker 2 -R219-, REMOVING AND INSTALLING .
Center Speaker -R208-, 9VD/9VS
- Removing and Installing. Refer to Center Speaker -R208-, REMOVING AND INSTALLING .
