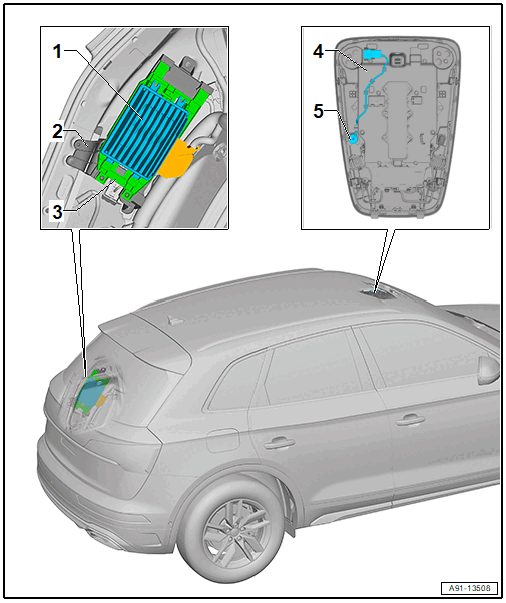

Component Location Overview - Sound System, Microphones And Amplifiers, From Product Improvement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Digital Sound System Control Module -J525-
- On the left side of the luggage compartment
- Removing and Installing. Refer to CONTROL MODULE/AMPLIFIER FOR DIGITAL SOUND SYSTEM, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
- Bracket
- Nut tightening specification: 3 Nm
- Adapter Plate
- Bolt tightening specification: 6 Nm
- Front Roof Module -WX3-
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Interior Microphone -R74-
- Removing and Installing. Refer to Interior Microphone -R74-, REMOVING AND INSTALLING .
