Multimedia Display Unit 3 Bracket -R315- / Multimedia Display Unit 4 Bracket -R316-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the Multimedia Display Unit 4 -Y32-. Refer to Multimedia Display Unit 3 -Y31- / Multimedia Display Unit 4 -Y32-, REMOVING AND INSTALLING .

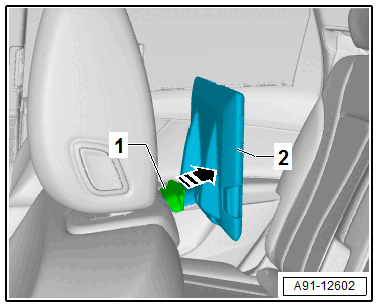

-- Release the locking mechanism -1- on the Multimedia Display Unit 4 Bracket -R316- -2- in the direction of -arrow-.
-- Remove the Multimedia Display Unit 4 Bracket - R316- -2- from the left front seat backrest toward the rear.
