Multimedia Display Unit 3 -Y31- / Multimedia Display Unit 4 -Y32-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

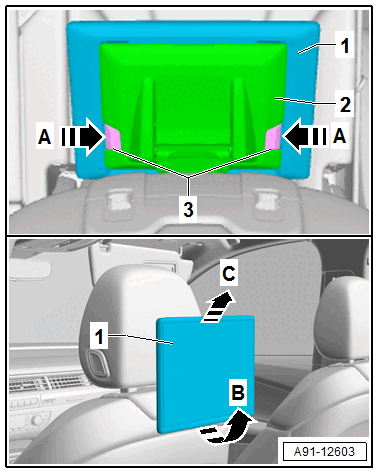

-- Release the catches -3- on the Multimedia Display Unit 4 Bracket -R316- -2- in the direction of the -arrow A-.
-- At the same time, remove the Multimedia Display Unit 4 -Y32- -1- from the Multimedia Display Unit 4 Bracket -R316- -2- in the direction of the -arrow B-.
-- Remove the Multimedia Display Unit 4 -Y32- -1- in the direction of the -arrow C- from the Multimedia Display Unit 4 Bracket -R316- -2-.
