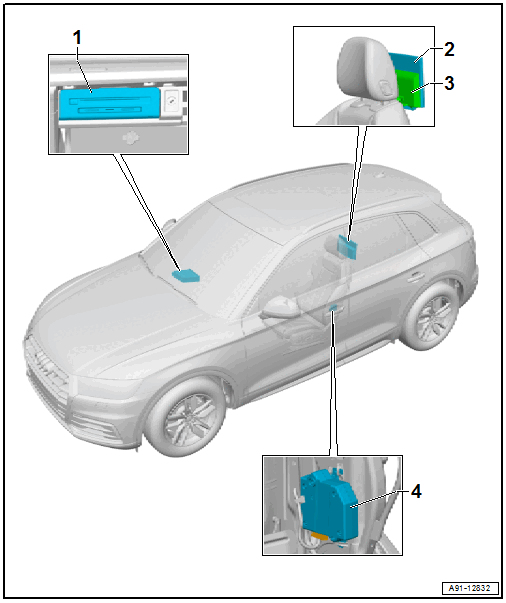

Component Location Overview - Rear Seat Entertainment System
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Multimedia Display Unit 3 -Y31- / Multimedia Display Unit 4 -Y32-
- On the Multimedia Display Unit 3 Bracket -R315- /Multimedia Display Unit 4 Bracket -R316-
- Removing and Installing. Refer to Multimedia Display Unit 3 -Y31- / Multimedia Display Unit 4 -Y32-, REMOVING AND INSTALLING .
- Multimedia Display Unit 3 Bracket -R315- / Multimedia Display Unit 4 Bracket -R316-
- On the left/right front seat backrest
- Removing and Installing. Refer to Multimedia Display Unit 3 Bracket -R315- / Multimedia Display Unit 4 Bracket -R316-, REMOVING AND INSTALLING .
- Left Rear Information Display Control Head Control Module -J648- / Right Rear Information Display Control Head Control Module -J649-
- On the right/left front seat backrest frame
- Removing and Installing. Refer to Left Rear Information Display Control Head Control Module -J648- /Right Rear Information Display Control Head Control Module -J649-, REMOVING AND INSTALLING .
