Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

Vehicles with Digital Sound System Control Module -J525-

-- Remove the luggage compartment left side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Digital Sound System Control Module -J525-. Refer to CONTROL MODULE/DIGITAL SOUND SYSTEM AMPLIFIER, REMOVING AND INSTALLING .

-- Remove the Digital Sound System Control Module -J525- bracket.

Vehicles without Digital Sound System Control Module -J525-

-- Remove the service cover from the left luggage compartment side trim panel. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL .

Continuation for All Vehicles

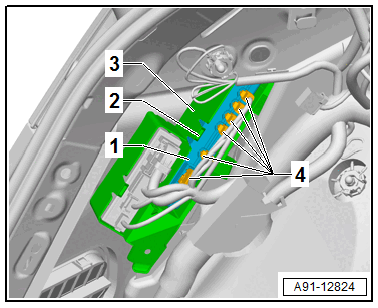

-- Disconnect the connectors -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retaining tab -2-.

-- Remove the control module -1-.
