Left Peripheral Camera -R244- /Right Peripheral Camera -R245-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the exterior rearview mirror turn signal. Refer to TURN SIGNAL, REMOVING AND INSTALLING .

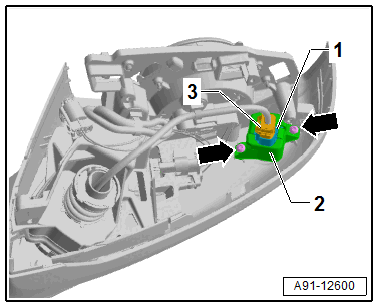

-- Remove the bolts -arrows-.
-- Remove the Left Peripheral Camera -R244- -1- with the bracket -2- from the exterior rearview mirror.
-- Release and disconnect the connector -3- from the Left Peripheral Camera -R244- -1-.
-- Remove the Left Peripheral Camera -R244- -1- from the bracket -2-.
