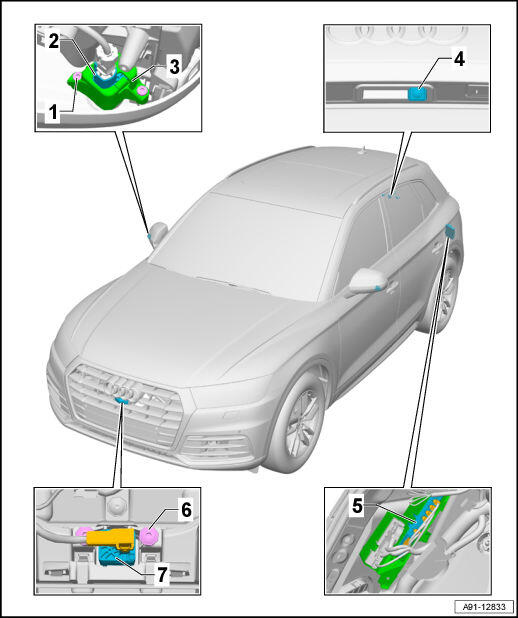

Component Location Overview - Peripheral Camera
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 2 Nm
- Quantity: 2
- Right Peripheral Camera -R245- /Left Peripheral Camera -R244-
- Removing and Installing. Refer to Left Peripheral Camera -R244- /Right Peripheral Camera -R245-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Bracket
- Rear Peripheral Camera -R246-
- Removing and Installing. Refer to Rear Peripheral Camera -R246-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Peripheral Camera Control Module -J928-
- On the left side of the luggage compartment
- Removing and Installing. Refer to Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
- Bolt
- 3 Nm
- Quantity: 2
- Front Peripheral Camera -R243-
- Removing and Installing. Refer to Front Peripheral Camera -R243-, REMOVING AND INSTALLING .
- Calibrating. Refer to PERIPHERAL CAMERA, CALIBRATING .
