Telematics Emergency Battery -A16-, REMOVING AND INSTALLING, WITH CONNECT PLUS, (IV0 THROUGH IV6), THROUGH PRODUCT IMPROVEMENT: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the Control Module for Emergency Call Module and Communication Unit -J949-. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .

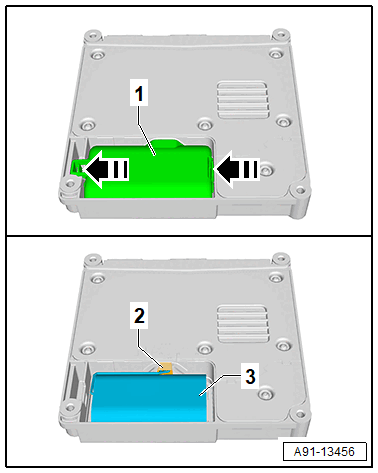

-- Release the retaining tabs in direction of -arrows-.
-- Remove the battery cover -1-.
-- Remove the emergency battery -3-.
-- Disconnect the connector -2-.
