Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the left front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Fold the carpet to the side. Refer to CARPET, REMOVING AND INSTALLING .

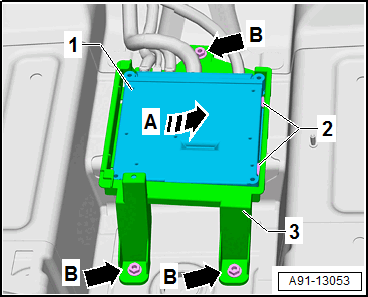

-- Release the tab -2- and pivot out the control module -1- in direction of -arrow A-.
-- Disconnect the connectors on the control module -1-.
Bracket, Removing
-- Remove the nuts -B arrows- and remove the bracket -3-.
