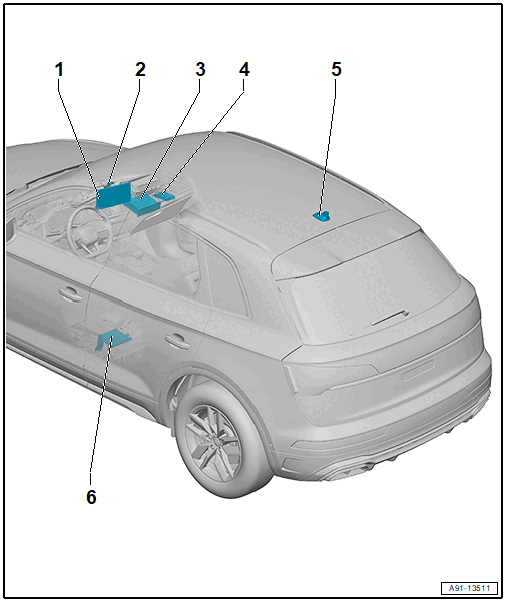

- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING, FROM PRODUCT IMPROVEMENT .
- Near Field Communication Antenna -R269-
- ER5
- In front instrument panel at the center
- Removing and Installing. Refer to NEAR FIELD COMMUNICATION ANTENNA, REMOVING AND INSTALLING .
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Chip Card Reader Control Module -J676-
- ER5
- In the glove compartment
- Removing and Installing. Refer to CHIP CARD READER CONTROL MODULE, REMOVING AND INSTALLING .
- GPS Antenna -R50-
- In the Roof Antenna -R216-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Control Module for Emergency Call Module and Communication Unit -J949-
- Under the left front seat
- Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .
