Chip Card Reader Control Module, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Open the glove compartment.
-- Remove the chip card from the Chip Card Reader Control Module -J676-.

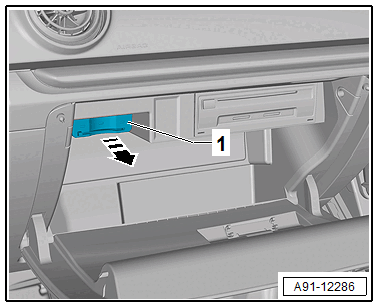

-- Slide the control module -1- rearward in direction of -arrow- until it can be removed from the trim.
-- Disconnect the connectors at the control module.
-- Remove the control module.
