Steering Wheel Touch Recognition Control Module -J1158-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the driver airbag. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
-- Draw sketches or take pictures of the wire routing in the steering wheel. This will ensure the original wire routing when installing.

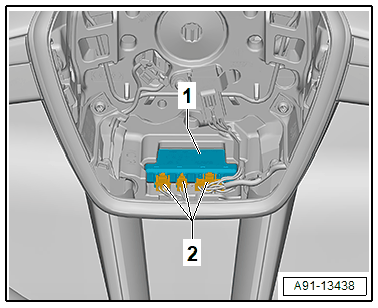

-- Disconnect the connectors -2-.
-- Remove the Steering Wheel Touch Recognition Control Module -J1158- -1-.
