Right Multifunction Buttons on Steering Wheel -E441- /Left Multifunction Buttons on Steering Wheel -E440-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the driver airbag. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
-- Draw sketches or take pictures of the wire routing in the steering wheel. This will ensure the original wire routing when installing.

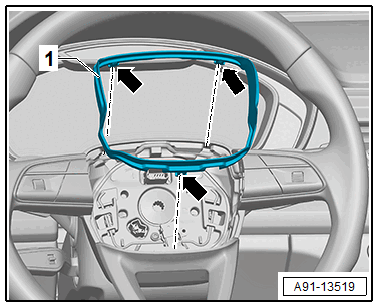

-- Loosen the catches -arrows- with the Trim Removal Wedge:3409 .
-- Remove the trim for the steering wheel -1-.
-- Use the Trim Removal Wedge:3409 to release the multifunction button -1- close to the retainer in direction of -arrow B-.
-- Pry out the multifunction button -1- on the other side in direction of -arrow A- using the Trim Removal Wedge:3409 .
-- Disconnect the connectors.
