Overview - Infotainment System, MMI Radio (I8E), Before Product Improvement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Information Electronics Control Module 1 -J794- with integrated CD player/SD card reader in the glove compartment
- Radio function is integrated in the Information Electronics Control Module 1 -J794-
- Front Information Display Control Head -J685-, 7 inch display, in the center of the instrument panel
- Instrument Cluster Control Module -J285-, color display in the instrument cluster, 9S5
- Multimedia System Control Head -E380- in the center console
- External Audio Source Connection -R199- in the multimedia device storage compartment in the center console, USB charging, AUX IN, UE4
- Sound system: basic sound, 8RM
- Video input for rearview camera system, KA2
- Bluetooth Hands-Free Calling, 9ZX
- Multifunction Steering Wheel
- Voice recognition system
Optional
- Digital radio integrated in the Information Electronics Control Module 1 -J794-, ER1/ER2/EZ1 and QV3/Q0D.
- The satellite radio is integrated in the Information Electronics Control Module 1 -J794-, ER3 and QV3
- Instrument Cluster Control Module -J285-, color display in the instrument cluster, 9S7
- Digital Sound System Control Module -J525- in the left side of the luggage compartment, 9VS
- External Audio Source Connection -R199- in the multimedia device storage compartment in the center console, USB (quantity: 2), AUX IN, UE7
- Sound system: standard sound system, 9VD/premium sound system, 9VS
- Audi phone box light, 9ZV
- Audi phone box, 9ZE
- Emergency call system, IW1/IW3

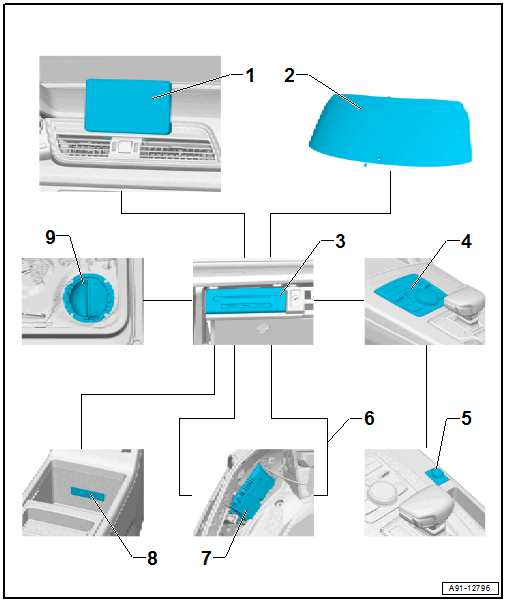

- Front Information Display Control Head -J685- in Center of the Instrument Panel
- Rear Window Antennas
- Information Electronics Control Module 1 -J794- in the Glove Compartment
- Multimedia System Control Head -E380- in the Center Console
- Driver Volume Control -E67- in the Center Console
- MOST Bus
- Digital Sound System Control Module -J525- in Luggage Compartment on Left Side
- External Audio Source Connection -R199- in the Multimedia Device Storage Compartment in the Center Console
- Sound Systems
