Overview - Infotainment System, MMI Navigation Plus (I8H), Before Product Improvement

• Information Electronics Control Module 1 -J794- with integrated DVD player and two SD card readers in the glove compartment
• Radio function is integrated in the Information Electronics Control Module 1 -J794-
• Front Information Display Control Head -J685-, 8.3 inch display, in the center of the instrument panel
• Instrument Cluster Control Module -J285-, color display in the instrument cluster, 9S7
• Multimedia System Control Head -E380- in the center console
• External Audio Source Connection -R199- in the multimedia device storage compartment in the center console, USB charging, AUX IN, UE4
• Sound system basic sound, 8RM
• Video input for rearview camera system, KA2
• Bluetooth Hands-Free Calling, 9ZX
• Multifunction Steering Wheel
• Voice recognition system

Optional

• Digital radio integrated in the Information Electronics Control Module 1 -J794-, ER1/ER2/EZ1 and QV3/Q0D.
• The satellite radio is integrated in the Information Electronics Control Module 1 -J794-, ER3 and QV3
• Navigation system MMI navigation Plus with integrated Information Electronics Control Module 1 -J794-, 7UG
• Instrument Cluster -KX2-, color display in the instrument cluster, Audi virtual cockpit, 9S8
• Digital Sound System Control Module -J525- in the left side of the luggage compartment, 9VS
• External Audio Source Connection -R199- in the multimedia device storage compartment in the center console, USB (quantity: 2), AUX IN, ASI, UI2
• TV Tuner -R78- in the right rear of the luggage compartment, QV1
• Sound system: standard sound system, 9VD/premium sound system, 9VS
• Audi phone box light, 9ZV
• Audi phone box, 9ZE
• Audi connect with SIM card reader integrated in Information Electronics Control Module 1 -J794-, EL3
• Emergency call system, IW1/IW3

ASI - Audi Smartphone Interface

Courtesy of AUDI OF AMERICA, LLC

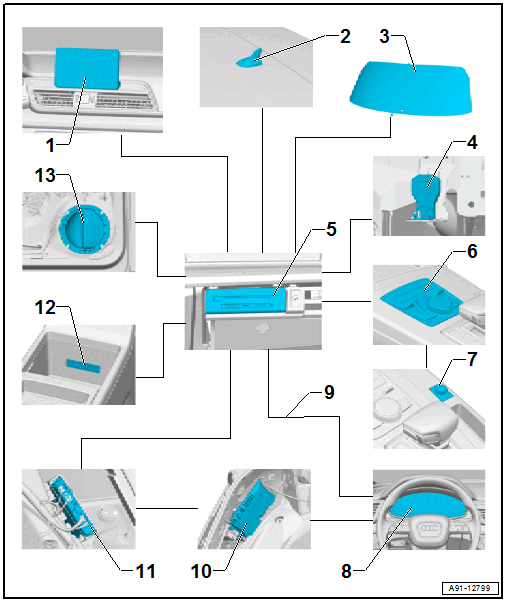

1. Front Information Display Control Head -J685- in Center of the Instrument Panel
2. Roof Antenna -R216-
3. Rear Window Antennas
4. Bumper Antennas
5. Information Electronics Control Module 1 -J794- in the Glove Compartment
6. Multimedia System Control Head -E380- in the Center Console
7. Driver Volume Control -E67- in the Center Console
8. Instrument Cluster -KX2-
9. MOST Bus
10. Digital Sound System Control Module -J525- in Luggage Compartment on Left Side
11. TV Tuner -R78- in Luggage Compartment on Rear Right Side
12. External Audio Source Connection -R199- in the Multimedia Device Storage Compartment in the Center Console
13. Sound Systems
