Overview - Infotainment System, From Product Improvement

• Information Electronics Control Module 1 -J794- in the Glove Compartment
• Radio function is integrated in the Information Electronics Control Module 1 -J794-
• Front Information Display Control Head -J685-, 10.1 inch display in the center of the instrument panel
• Instrument Cluster Control Module -J285-, Display in Instrument Cluster
• USB Distributor -R293- in the multimedia device storage compartment in the center console, USB port (quantity: 1) for data and charging
• Sound system: basic sound, 8RM
• Bluetooth Hands-Free Calling, 9ZX
• Multifunction Steering Wheel
• Voice recognition system

Optional

• Digital radio integrated in the Information Electronics Control Module 1 -J794-, ER1/ER2/EZ1 and QV3/Q0D.
• The satellite radio is integrated in the Information Electronics Control Module 1 -J794-, ER3 and QV3
• MMI Navigation plus navigation system, 7UG
• Digital Sound System Control Module -J525- in the left side of the luggage compartment, 9VS
• USB Connection 1 -U41- in the front center console storage compartment, USB port (quantity: 1) for data and charging
• TV Tuner -R78- in the right rear of the luggage compartment, QV1
• Sound systems: Audi sound system, 9VD/Premium Sound System, 9VS
• Audi phone box light, 9ZV
• Audi phone box, 9ZE

Courtesy of AUDI OF AMERICA, LLC

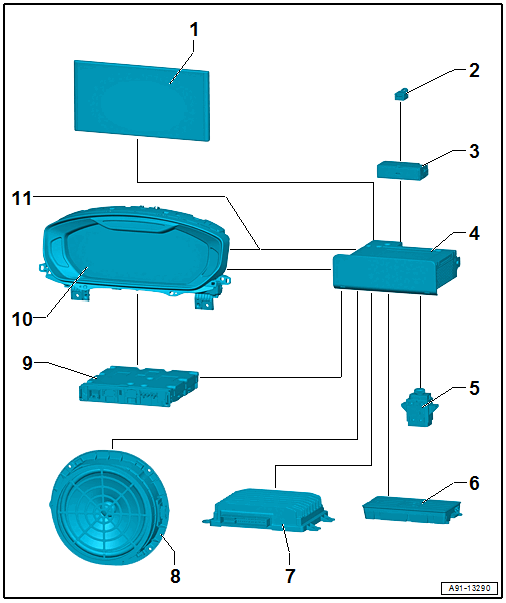

1. Front Information Display Control Head -J685-, display in center of the instrument panel
2. USB Connection 1 -U41- in the front center console storage compartment
3. USB Distributor -R293- in the multimedia device storage compartment in the center console
4. Information Electronics Control Module 1 -J794- in the Glove Compartment
5. Driver Volume Control -E67- in the center console
6. Mobile Device Charger 1 -J1146- in the multimedia device storage compartment in the center console
7. Digital Sound System Control Module -J525- in Luggage Compartment on Left Side
8. Sound Systems
9. TV Tuner -R78- in luggage compartment on rear right side
10. Instrument Cluster Control Module -J285-
11. MOST Bus
