Multimedia Button Module -E817-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the center console insert decorative trim. Refer to OVERVIEW - CENTER CONSOLE .

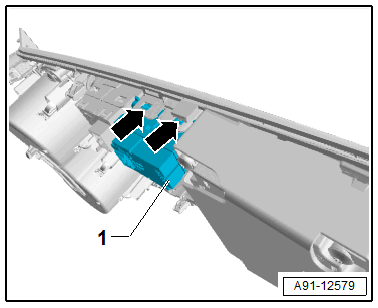

-- Release the straps -arrows- on both sides of the center console insert decorative trim.
-- Push the Multimedia Button Module -E817- -1- downward out of the center console insert decorative trim.
