Infotainment System Display, Removing And Installing, From Product Improvement: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the center and front passenger side instrument panel vent. Refer to CENTER VENT, REMOVING AND INSTALLING .

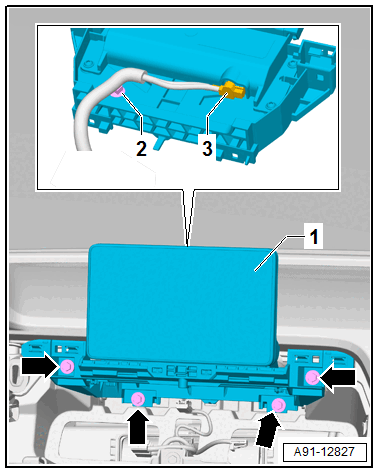

-- Remove the bolts -arrows-.
-- Pull the display -1- toward the rear out of the instrument panel until the connector is accessible.
-- Remove the wiring harness bracket -2- from the display support.
-- Release and disconnect the connector -3- on the display -1-.

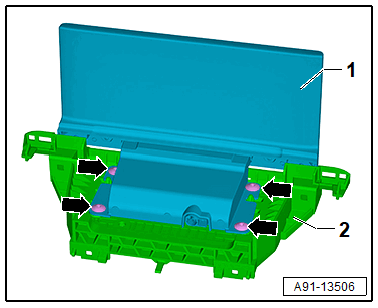

-- Remove the bolts -arrows-.
-- Remove the display -1- from the display support -2-.
