Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Open the glove compartment.

-- On vehicles before product improvement, remove any data storage device still in the Information Electronics Control Module 1 -J794-.

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

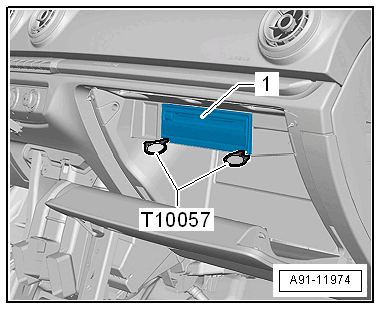

-- Insert two of the Radio Removal Tool:T10057 into the release slots on the Information Electronics Control Module 1 -J794- -1- until they engage. The points on the gripping eyelets face outward.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Information Electronics Control Module 1 -J794- -1- from the glove compartment at the Radio Removal Tool:T10057 grip eyes.

-- Release and disconnect the connectors from the Information Electronics Control Module 1 -J794- -1-.

-- Insert the Fiber-Optic Repair Set - Connector Protective Caps:VAS6223/9 -1- onto the MOST bus connector -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Press the tab on the Information Electronics Control Module 1 -J794- and remove the Radio Removal Tool:T10057 .
