Driver Volume Control -E67-, REMOVING AND INSTALLING: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

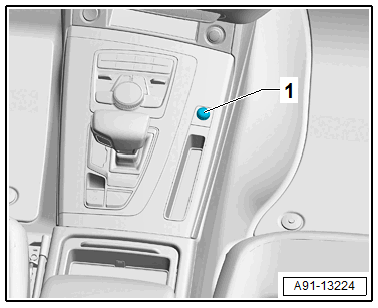

The Driver Volume Control -E67- -1- is installed in the center console decorative trim.
Vehicles from Product Improvement
If the Driver Volume Control -E67- is being replaced, the following procedure applies:
-- Connecting and switching on the Vehicle Diagnostic Tester.
-- Switch the ignition on.
-- Select and start the Diagnostic operating mode.
-- Select the Test plan tab.
-- Select the Select individual test button and select the following tree structure consecutively:
- Body
- Electrical system
- 01 - OBD-capable systems
- 005F - Information Electronics Control Module 1 - J794 (MIB 3)
- 005F - Information Electronics Control Module 1, functions
- 0693 - Driver Volume Control -E67-, replacing
-- Start the selected program and follow the instructions on the Vehicle Diagnostic Tester display.
Continuation for All Vehicles
