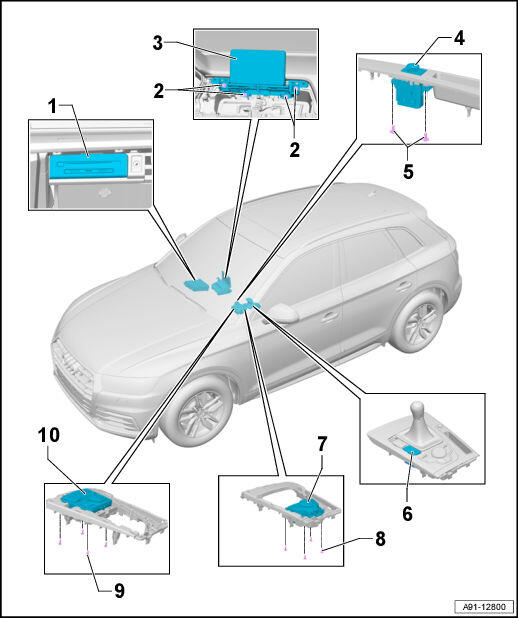

Component Location Overview - Infotainment System, Before Product Improvement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Bolt
- 3 Nm
- Quantity: 4
- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING, BEFORE PRODUCT IMPROVEMENT .
- Driver Volume Control -E67-
- In the center console
- Removing and Installing. Refer to Driver Volume Control -E67-, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Quantity: 2
- Multimedia Button Module -E817-
- Vehicles with Manual Transmission
- In the center console
- Removing and Installing. Refer to Multimedia Button Module -E817-, REMOVING AND INSTALLING .
- Multimedia System Control Head -E380-
- Vehicles with Manual Transmission
- In the center console
- Removing and Installing. Refer to Multimedia System Control Head -E380-, REMOVING AND INSTALLING, MANUAL TRANSMISSION .
- Bolt
- 1.5 Nm
- Quantity: 4
- Bolt
- 1.5 Nm
- Quantity: 4
- Multimedia System Control Head -E380-
- Vehicles with Automatic Transmission
- In the center console
- Removing and Installing. Refer to Multimedia System Control Head -E380-, REMOVING AND INSTALLING, AUTOMATIC TRANSMISSION .
