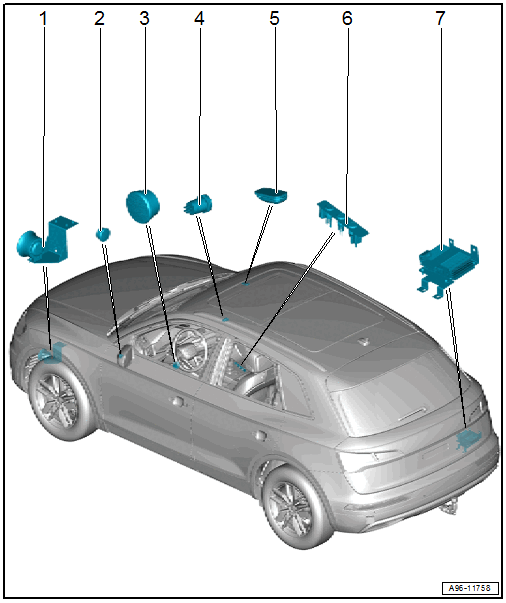

Component Location Overview - Hazard Alarm System
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Exterior Speaker
- Behind the bumper cover, left side panel
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Exterior Microphones
- In the exterior mirror housings
- Secured with commercially available plastic wedge
- Removing and Installing. Refer to MIRROR TRIM, REMOVING AND INSTALLING .
- Interior Speaker
- In the left footwell center console trim panel
- Removing and Installing. Refer to FRONT FOOTWELL CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING .
- Emergency -Off- Button
- In the glove compartment
- Removing and Installing. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .
- Interior Microphone
- In the roof module
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Control Panel
- In the center console
- Removing and Installing. Refer to CENTER CONSOLE DECORATIVE TRIM, REMOVING AND INSTALLING .
- Hazard Alarm Control Module
- Behind the luggage compartment side trim panel on the right side
- Removing and Installing. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
