External Multimedia Device Connection, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the center console rear trim. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .
-- Remove the air duct connecting piece from the rear center console.

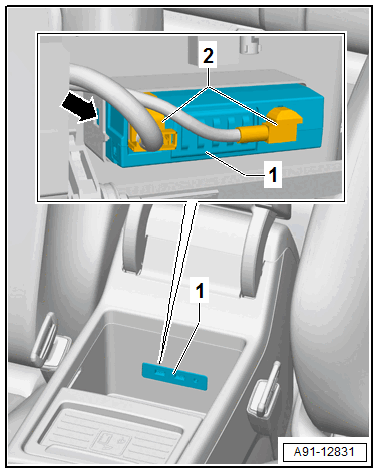

-- Depending on vehicle equipment, disconnect the present connectors -2-.
-- Release the retaining tab -arrow- on both sides.
-- Push out the external multimedia device connection -1-.
