External Multimedia Device Connection, Removing And Installing: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

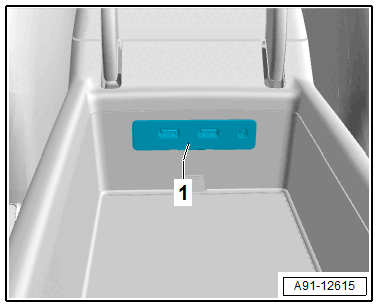

The external multimedia device connection -1- is located in the multimedia device storage compartment in the center console.
Fig 1: AMI Component Location - USB Distributor -R293- /USB Connection 1 -U41- /USB Connection 2 -U42-, AUX IN, ASI, UI2/UE7
Vehicles from Product Improvement
If the USB Distributor -R293- is being replaced, the following procedure applies:
-- Connecting and switching on the Vehicle Diagnostic Tester.
-- Switch the ignition on.
-- Select and start the Diagnostic operating mode.
-- Select the Test plan tab.
-- Select the Select individual test button and select the following tree structure consecutively:
- Body
- Electrical system
- 01 - OBD-capable systems
- 005F - Information Electronics Control Module 1 - J794 (MIB 3)
- 005F - Information Electronics Control Module 1, functions
- 0743 - USB Distributor -R293, replacing
-- Start the selected program and follow the instructions on the Vehicle Diagnostic Tester display.
Continuation for All Vehicles
