, Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.
-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

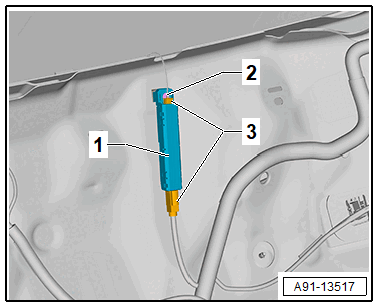

-- Disconnect the connectors -3-.
-- Loosen the bolt -2- several turns and remove the antenna amplifier -1-.
Wireless Data Transmission Antenna -R336-, Installing
Install in reverse order of removal.
